MegEye-W5K-i8

ShenXing 8" Face Recognition Pad

Key Feature:

  • Industrial Design : 13 mm ultra-thin alloy body, 70% screen-to-body ratio.
  • Recognition : 100,000 faces capacity, accuracy > 99.8%, speed =< 150ms.
  • Light Adaptability : Working in different light environment, even in 0 lux dark scene.
  • Aniti-spoofing : RGB+IR liveness detection, effectively defending against various forms of attacks such as photos, 3D paper models.
  • Multifunction : Supporting multiple authentication such as card and QR codes. Connecting with various peripheral modules such as temperature screening, etc.
  • Integration : Rich REST API and SDK make integration very easy and friendly.

Application Scenarios:

Specification:

System



Card capacity

100,000

Operation system

Android 7.1



Face capacity

100,000

Main Processor

RK3399



Password capacity

100,000

RAM

4G



Event capacity

200,000

ROM

16G



Personnel group

128

Network Protocol

IPv4, TCP, UDP



Authentication

Interoperability

Open SDK



Authentication method

Face/Card/Password/QR code, Face+Card, Face+Password

Open API

Support



Display



Card type

Mifare

Screen Size

8-inch



Card reading distance

0 to 2 cm

Screen Resolution

1280 × 800



Card reading speed

<1s

Screen Type

Capacitive touch screen



Face recognition distance

0.3 to 2 m

Adjust screen brightness

Support



Face recognition speed

< 0.15 s

Status indicator

Breathing lamp design
White Flashes 3 times: Recognition successful



Face recognition accuracy

≥99.8%



Function

Distance sensor

Support



Language

Chinese, English, Thai, Japanese

Video & Audio



Operation mode

Standalone/server/cloud mode

Camera resolution

3MP RGB+1.3MP IR



Remote unlock

Support

Camera FOV

D: 74.38° H: 66.91° V: 40.91°



Anti-passback

Support (API supported)

Minimum FR illuminance

0 lux (without compensation light)



Face anti-spoofing

Support

WDR

Backlight resistance



Time synchronization

Support

Voice prompt

Support



Standby mode

Support (can change background display)

Interface



Mask recognition

Support

Network interface

1* 100M Ethernet port



General

RS-485

1



Wi-Fi

Support

Wiegand

1 in/ 1 out



Power supply

DC 12V, 2A

Lock output

1



Working temperature

-10 °C to 50 °C

Exit button input

1



Working humidity

0 to 90% (Non-condensing)

Door contact input

1



Working envirionment

Indoor

Alarm input

2



Dimensions

230 mm × 127 mm × 15 mm

Alarm output

1



Protective level

IP54

Power

1



Housing material

Aluminum alloy

TAMPER

1



Net weight

625g

USB type C

1



Installation

Wall mount/ Pole mount/ Turnstile

Capacity



Certifications

CE

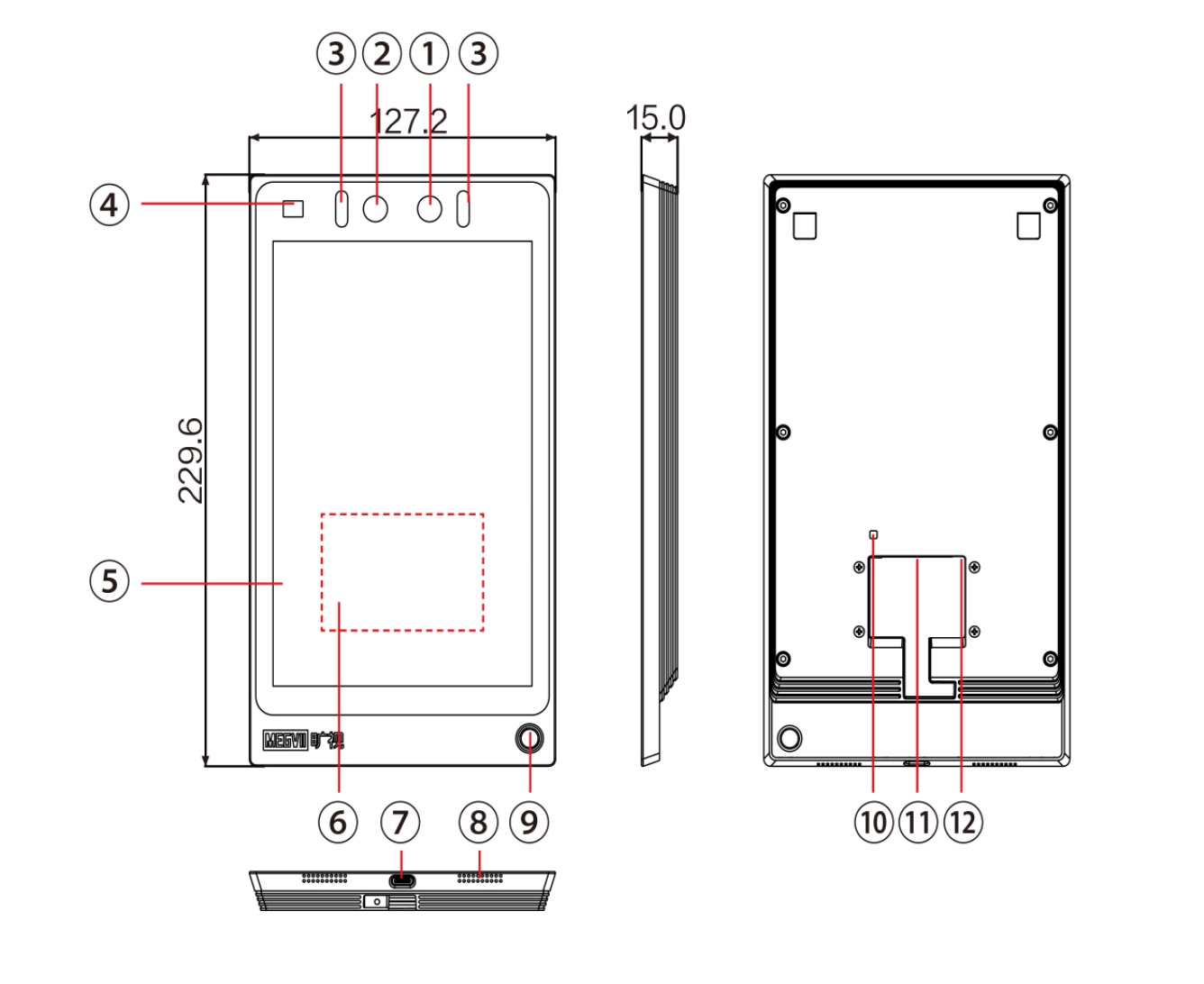

No Name Description
1 Visible light camera Captures visible light images
2 Infrared camera Captures infrared images
3 Infrared fill light Provides fill light for the infrared camera
4 Proximity Sensor Wake up device when needed
5 Display screen 8-inch multi-touch display screen
6 Card tap area Users tap their cards here
7 USB port A Type C port for connection with USB drives
8 Speaker Plays audio prompts
9 Indicator light Indicates the access result and power status
9 Tamper prevention button Prevents disassembly after installation
10 Tamper prevention button Prevents disassembly after installation
11 External cable connection Used for connection to a power source
12 Reset button Long-press to restore to factory default settings

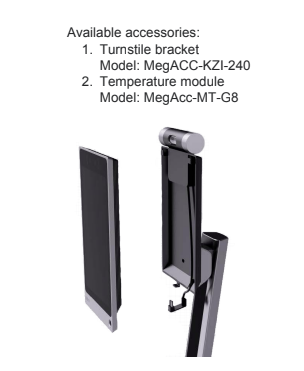

Accessories
