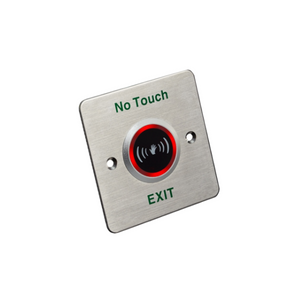

DS-K7P03

There is "/T" in the label. Stainless steel panel, Led Indicator; Dimension(L×W×H): 86×86×25.7mm(3.39×3.39×1.01").

  • Dimension (L × W × H): 86 mm × 86 mm × 25.7 mm (3.39" × 3.39" × 1.01").
  • Input Voltage: 12 VDC.
  • Working Current: 40 mA (standby), 70 mA (working).
  • Current rating 1 A@30 VDC.
  • Output Contact: NO/NC/COM contact.
  • Panel: Stainless steel.
  • Aging Test: Already passed 1 million times aging test.
  • Suitable Doors: All kinds of narrow doorframes.
  • Working Temperature: -20 °C to 50 °C (-4 °F to 122 °F).
  • Working Humidity: 0 to 95% (relative humidity).
  • Detection Range (Adjustable): 40 mm to 120 mm (1.57 to 4.72").
  • Time Delay: 1 to 25 s (adjustable)
  • LED Indicator Status: Green/red LED indicates working/standby.
  • Product Weight: 0.2 kg (0.44 lb).
