MegEye-W4K-E7
Shenxing 7" Face Recognition Pad
Key Feature:
- Recognition : 50,000 faces capacity, accuracy > 99.8%, speed =
- Light Adaptability : Working in different light environment, even in 0 lux dark scene.
- Aniti-spoofing : RGB+IR liveness detection, effectively defending against various forms of attacks such as photos, 3D paper models.
- Multifunction : Supporting multiple authentication such as card and QR codes. Connecting with various peripheral modules such as temperature screening, etc.
- Integration : Rich REST API and SDK make integration very easy and friendly.
Application Scenarios:
Specification:
|
System |
Face capacity |
50,000 |
||
|
Operation system |
Linux |
Password capacity |
50,000 |
|
|
Main Processor |
Embedded Processor Hi3516 DV300 |
Event capacity |
50,000 |
|
|
RAM |
1G |
Personnel group |
128 |
|
|
ROM |
4G |
Authentication |
||
|
Network Protocol |
IPv4, TCP, UDP |
Authentication method |
Face/Card/Password/QR code, Face+Card, Face+Password |
|
|
Open API |
Support |
|||
|
Display |
Card type |
Mifare |
||
|
Screen Size |
7-inch |
Card reading distance |
0 to 2 cm |
|
|
Screen Resolution |
1024 x 600 |
Card reading speed |
<1s |
|
|
Screen Type |
Capacitive touch screen |
Face recognition distance |
0.3 to 2 m |
|
|
Status indicator |
Breathing lamp design |
Face recognition speed |
< 0.2 s |
|
|
Face recognition accuracy |
≥99.8% |
|||
|
Function |
||||
|
Video & Audio |
Language |
Chinese, English, Thai |
||
|
Camera resolution |
RBG + IR (2MP) |
Remote unlock |
Support |
|
|
Camera FOV |
D: 69.5° H: 61.6° V: 35° |
Anti-passback |
Support (API Supported) |
|
|
Minimum FR illuminance |
0 lux (without compensation light) |
Face anti-spoofing |
Support |
|
|
WDR |
Backlight resistance |
Time synchronization |
Support |
|
|
Vioice prompt |
Support |
Standby mode |
Support (can change background display) |
|
|
Interface |
Mask recognition |
Support |
||
|
Network interface |
1* 100M Ethernet port |
Web configuration |
Support |
|
|
RS-485 |
1 |
General |
||
|
Wiegand |
1 in/ 1 out |
Wi-Fi |
Support |
|
|
Lock output |
1 |
Power supply |
DC 12V, 2A |
|
|
Exit button input |
1 |
Working temperature |
-20 °C to 65 °C |
|
|
Door contact input |
1 |
Working humidity |
0 to 90% (Non-condensing) |
|
|
Alarm input |
2 |
Working envirionment |
Indoor and outdoor |
|
|
Alarm output |
1 |
Dimensions |
216 mm × 115 mm × 21 mm |
|
|
Power |
1 |
Protective level |
IP65 |
|
|
TAMPER |
1 |
Housing material |
PC+ABS; Aluminum alloy frame |
|
|
USB type C |
1 |
Net weight |
440g |
|
|
Capacity |
Installation |
Wall mount/ Pole mount/ Turnstile |
||
|
Card capacity 50,000 |
Certifications |
CE |
||

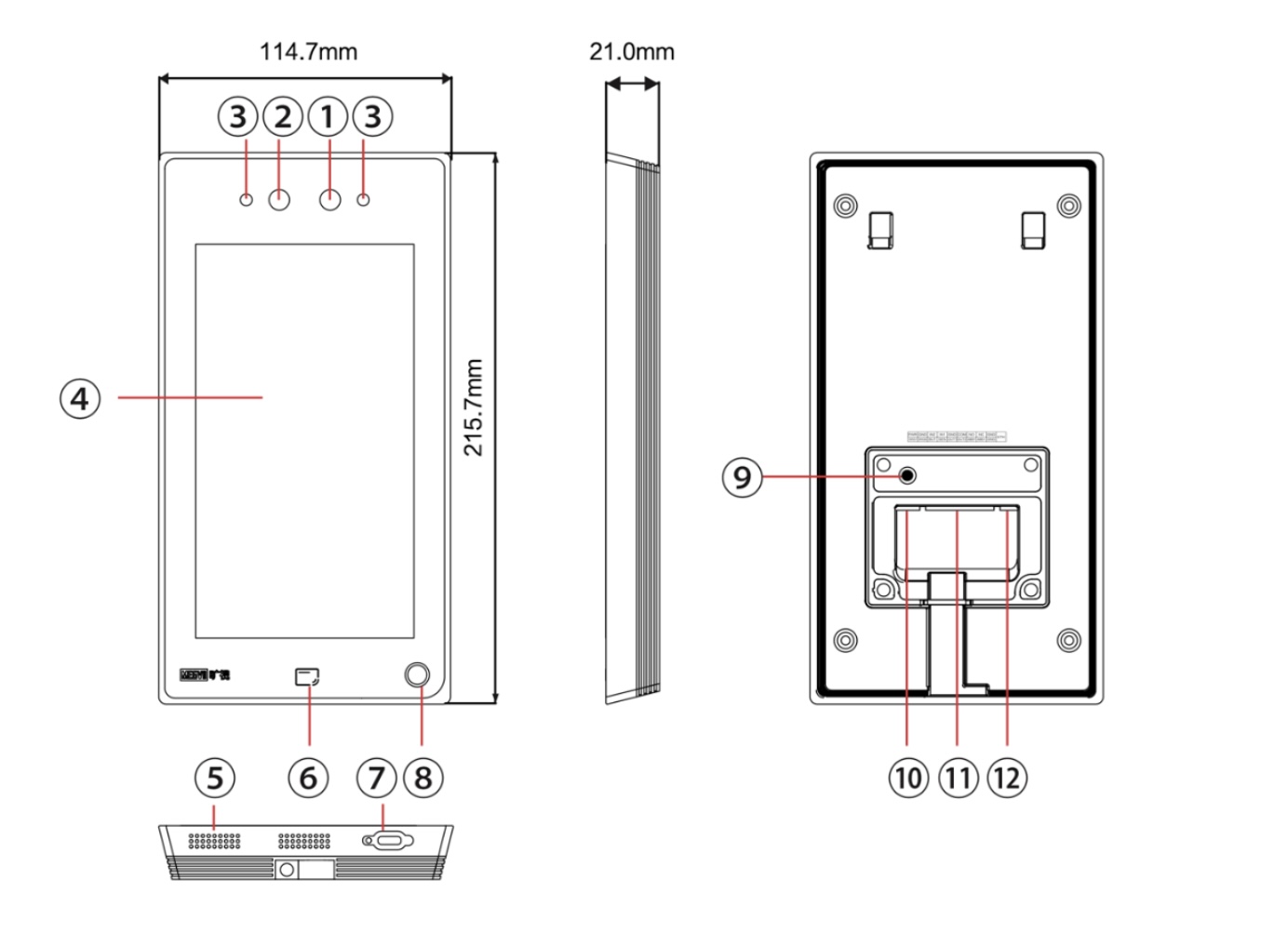

| No | Name | Description |
| 1 | Visible light camera | Captures visible light images |
| 2 | Infrared camera | Captures infrared images |
| 3 | Infrared fill light | Provides fill light for the infrared camera |
| 4 | Display screen | 7-inch multi-touch display screen |
| 5 | Speaker | Plays audio prompts |
| 6 | Card tap area | Users tap their cards here |
| 7 | USB port | A Type C port for connection with USB drives |
| 8 | Indicator light | Indicates the access result and power status |
| 9 | Tamper prevention button | Prevents disassembly after installation |
| 10 | RS232 debugging port | Used for troubleshooting and upgrades |
| 11 | External cable connection | Used for connection to a power source |
| 12 | Reset button | Long-press to restore to factory default settings |
