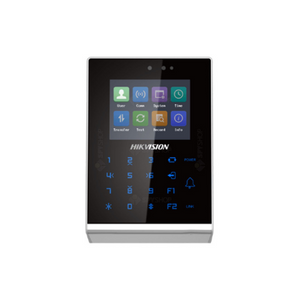

DS-K1T105AM

2.8 inch LCD-TFT Screen Standalone Access Control Terminal, Built-in Mifare card reading module

  • IP addresses conflicted alarm
  • Supports communicating with 4 control clients simultaneously; Supports uploading real-time events
  • Gets offline events: Avoids events losing
  • Touch mode and blue light display technique for keypad
  • Stand-alone settings for the terminal
  • 2.8-inch LCD display screen to display the time, the date, etc.
  • Max. 100,000 valid card capacity, and Max. 300,000 access control events capacity
  • Communication via wired network (TCP/TP) and Wi-Fi
  • Supports ISUP protocol for public network communication
  • Supports multiple door opening modes (card, card + password, exit button, etc.)
  • Supports RS-485 and Wiegand (26/34) communication for connecting the external card reader
  • Applies authentications from the client to the device
  • Supports working as a card reader, and supports Wiegand (26/34) interface and RS-485 interface for accessing the controller
  • Supports Mifare card reading
  • M1 card encryption
  • Tampering detection, unlocking overtime alarm, invalid card presenting over times alarm, forced opening door alarm, and duress card alarm
  • Creates dismiss code for dismiss alarm
  • Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
  • Data can be permanently saved after power-off
