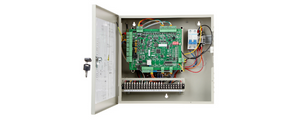

DS-K2601T

SRP: 17,200 THB (Excl. VAT)

Single-door Access Controller, Storage with 100,000 cards and 300,000 access control events





  • 32-bit high-speed processor
  • Supports up to 100,000 cards (including 97,000 non visitor cards and 3,000 visitor cards) and 300,000 card presenting records
  • 2 card readers (RS-485 interface), and 2 card readers (Wiegand interface)
  • Power supply (with Load) ≤ 50 W
  • Power supply (Without Load) ≤ 4 W
  • Supports TCP/IP communication, EHome 5.0, and ISAPI protocol. The communication data is specially encrypted to relieve the concern of privacy leak
  • Supports RS-485, OSDP, and Wiegand protocol for accessing card reader. Wiegand interface supports W26, W34 and is compatible with the third-party card reader with Wiegand interface
  • Accessible Card Reader: 2 card readers (RS-485 interface), and 2 card readers (Wiegand interface)
  • Dimensions : 373 mm × 345 mm × 98 mm (14.7" × 13.6" × 3.6")
  • Alarm input × 4, door contact × 1, exit button × 1, case input × 2, tamper alarm × 1
